LINKUP
[Certified] LINKUP 2019 Thunderbolt 3 to Dual DisplayPort 1.2 | 2x 4K 60Hz/Single 5K 60Hz Adapter for Mac & Windows | TB3 Aluminum Case | Not Compatible with USB-C Ports Without Thunderbolt 3 Logo
- SKU:
- TB3DP-1040
- UPC:
- 882991001057
- MPN:
- TB3DPVSB1040
- Weight:
- 4.20 Ounces
- Shipping:
- Calculated at Checkout
Description
[Certified] LINKUP 2019 Thunderbolt 3 to Dual DisplayPort 1.2 | 2x 4K 60Hz/Single 5K 60Hz Adapter for Mac & Windows | TB3 Aluminum Case | Not Compatible with USB-C Ports Without Thunderbolt 3 Logo
Purchase this product on Amazon globally:
- Allows connection of two 8 million pixel 4K (4096 x 2160) displays with snappy 60Hz refresh rates or a single 5K (5120 x 2880 @ 60Hz) display, uncompressed for full GPU utilization.
- Supports uncompressed video formats with 24 bit colour with multi-channel HDMI audio such as Dolby Digital, LCPM and DTS.
- Robust and stylish anodized aluminum housing protects and turns heads. Designed with a 10-inch cable allowing for plenty of comfortable desktop arrangements.
- Compatible with TB3 versions of Apple MacBook Pro Late 2016 / 2017 / 2018 & iMac 2017. Only compatible with systems that have internal dual DisplayPort wiring ***Please see notes in description.
- LINKUP cares. All LINKUP products are backed by a LINKUP 1-year warranty and complimentary premium customer support.
Connect & Perform
LINKUP Thunderbolt 3 Dual DP Adapters offer a simple solution for extreme resolution dual display setups with an unprecedented 40Gb/s of throughput packed in a premium aluminum chassis.
System Requirements & Compatibility
-Host computer must have 2 physical internally wired DisplayPort lines within system.
Presently only Thunderbolt 3 systems from Apple, Dell, HP, and Lenovo meet this requirement.
-Thunderbolt 3 uses a Thunderbolt 3 USB Type C interface, not to be confused with standard USB-C, however.
Thunderbolt 3 is REQUIRED for the adapter to function.
-Requires Thunderbolt 3 host firmware ("NVM"), version 14 or higher and updated Bios and GPU drivers.
-Incompatible with "passive" DisplayPort to HDMI/DVI/VGA adapters. Can use active adapters if conversion is required. Uses pure DisplayPort, Does not use DP++.
Dual Display Compatible Systems:
-Apple MacBook Pro 2016/2017 w/TB3, Apple iMac 2017 w/TB3
-Dell XPS 13 9350
-Dell XPS 13 9360
-Dell XPS 15 9550
-Dell XPS 15 9560
-Lenovo P50
-Gigabyte GA‑Z170X‑UD5 TH
-HP Thunderbolt 3 systems
Systems That Only Support a Single Video Output:
(These systems are wired with a single internal DisplayPort line to the Thunderbolt 3 port and cannot support two displays)
-Asus Thunderbolt 3 systems (Supports single output only)
-Razer Thunderbolt 3 systems (Single Display)
-Acer Thunderbolt 3 systems (Single Display)
-Intel Skull Canyon NUC6i7KYK (Single Display)
-Gigabyte Thunderbolt 3 BRIX systems (Single Display)
-Gigabyte GA‑Z170X‑Gaming 7 (Single Display)
-Gigabyte GA‑Z170X‑Gaming GT (Single Display)
Note*****Thunderbolt 3 Ports are REQUIRED for adapter to function, check for the Thunderbolt logo on your computer to ensure compatibility.
OS Requirements:
macOS 10.12 or later and Windows 10, 8.1, and 7.
Package Contents

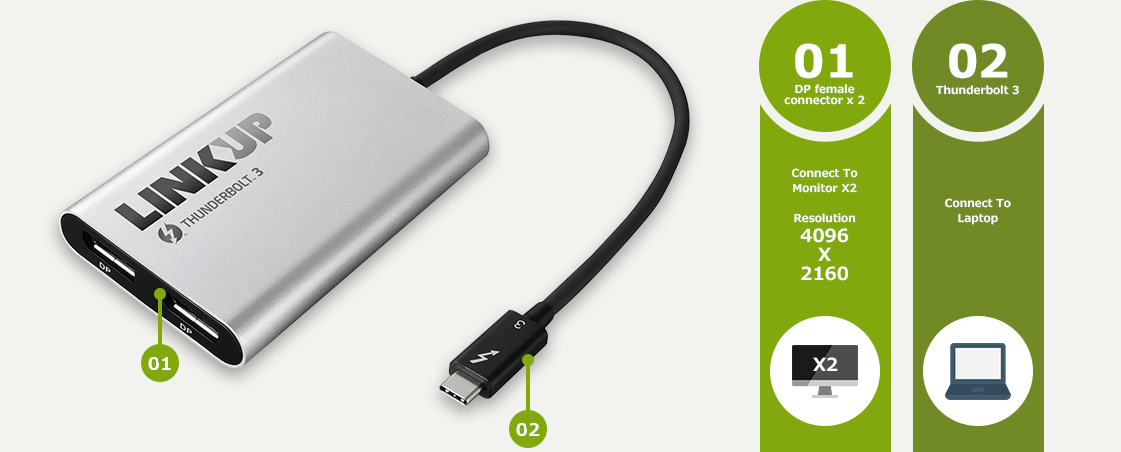

Thunderbolt 3 Dual DP output adapter
Specifications
User Interface | Upstream | Thunderbolt 3 male connector |
Downstream | DP female connector x 2 | |
Power | Power Mode | Bus-powered |
Video | Resolution | 4096 x 2160 @60Hz |
Ethernet | Standard | 10/100/1000 Base-T |
Power Adapter | Input: AC 100-240V | |
Output: DC 5V/4A | ||
Working Environment | Operation Temperature | 0 ~ 40 degree C |
Storage Temperature | -20 ~ 70 degree C | |
Dimension | 93(L) x 56(W) x 16(H) mm | |
Compliance | CE, FCC |
