AVA5 Gen5 Riser Cable vs PC cases List

Please check the brand and model of your PC case to find the recommended riser cable for your setup.

Please note:

Some cases have been tested by our product team.
Some recommendations are based on customer feedback.
Most suggestions are from PC case manuals and have not yet been verified.

If you can verify that a riser cable fits your case (which has not yet been tested), please let us know! We will offer you a discount on your purchase as a thank-you.

Please contact us for details.

Brand	Model	Suggested Riser	LINKUP Verified	User Confirmed	Suggested from Manual
Antec	Cannon	AG-P5-33SR-020BK-v2/v3/v4		x
Antec	Performance 1M	AG-P5-33VL-024BK-v2			M3x10mm Spacers May Required. Need further rerifications
ARCTIC	Xtender VG	AG-P5-33SR-020BK-v2/v3/v4			Please contact us for 1-min DIY method
ASUS	ROG Strix Helios	AG-P5-33SR-020BK-v2/v3/v4			Vertical slot available
ASUS	ProArt PA401	AG-P5-33SR-015BK-v3/v4		x	Vertical kit was included in the ProArt PA401 case. It can use 15cm right angle riser cable. 20cm is too long.
ASUS	ROG Hyperion GR701	AG-P5-33SR-020BK-v2/v3/v4		x
ASUS	Tuf Gaming GT502	AG-P5-33SR-015BK-v2/v3/v4		x (Rotatable PCI Slots)
be quiet!	Pure Base 501 LX	AG-P5-33SR-020BK-v2/v3/v4		x
be quiet!	Light Base 600 LX	AG-P5-33SR-020BK-v2/v3/v4			x
be quiet!	Silent Base 802	AG-P5-33SR-020BK-v2/v3/v4		X
be quiet!	Light Base 900 FX	AG-P5-33SR-015BK-v2/v3/v4			Rotatable PCI Slot with Vertical GPU Support
Cooler Master	Ncore 100 Air/Max	AG-P5-33SV-030BK-v3	Installation Guide		Only Left Screw Is Used
Cooler Master	NR200 (2-Slot GPU)	AG-P5-33SR-006BK-v4			x
Cooler Master	NR200 (3-Slot GPU)	AG-P5-33SR-006BK-v4			x
Cooler Master	Elite 301	AG-P5-33SR-020BK-v2/v3/v4

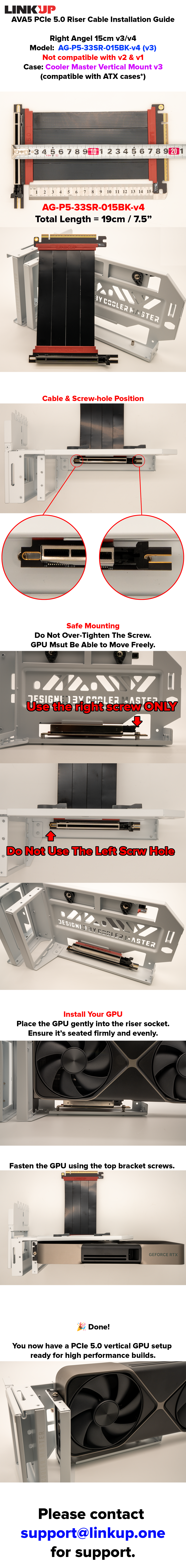

Cooler Master	Vertical GPU Mount v3	AG-P5-33SR-015BK-v3/v4	Installation Guide
CORSAIR	3500 Series	AG-P5-33SR-015BK-v3/v4	Installation Guide		Built-in Rotatable PCI Slot
CORSAIR	4000 Series	AG-P5-33SR-020BK-v3/v4	Installation Guide	x	Built-in Rotatable PCI Slot
CORSAIR	5000 Series	AG-P5-33SR-020BK-v3/v4	Installation Guide	x	Built-in Rotatable PCI Slot
CORSAIR	6500 sERIES	AG-P5-33SR-015BK-v3/v4			Optional Vertical Bracket Required
CORSAIR	7000 Series	AG-P5-33SR-020BK-v3/v4			x
CORSAIR	9000 Series	AG-P5-33SR-030BK-v3/v4			x
COUGAR	FV270	AG-P5-33SR-015BK-v2/v3			x
DAN Cases	A4-SFX	AG-P5-33VV-019BK-v3	x
Deepcool	MORPHEUS	AG-P5-33SR-015BK-v2/v3/v4		User Vefiried	M3x10 hex nuts and screws can be used as standoffs to support heavy weight GPU.
eBlaztr	eBlaztr	AG-P5-33VV-017BK-v2/v3
Fractal Design	Flex 2 Vertical GPU Mount	AG-P5-33SL-020BK-v2/v4	Installation Guide
Fractal Design	Define 7 XL	AG-P5-33SR-025BK-v2/v3			x
Fractal Design	Mood	AG-P5-33VL-024BK-v2			x
Fractal Design	Era ITX	No need			x
Fractal Design	Era 2	AG-P5-33VL-024BK-v2/v4	Installation Guide	M3x10 Nuts and screws required as standoffs	x
Fractal Design	Terra	AG-P5-33VL-024BK-v2	Installation Guide	M3x5 Nuts and screws required as standoffs	x
Fractal Design	North	Vertical Bracket Needed
Fractal Design	Ridge	AG-P5-33SS-005BK-v1/v2
Fractal Design	Define	AG-P5-33SR-020BK-v2/v3			x
Fractal Design	Meshify	AG-P5-33SR-020BK-v2/v3			x
Fractal Design	Meshify 2 XL	AG-P5-33SR-025BK-v2/v3		x
Fractal Design	Node 202	AG-P5-33SS-005BK-v1/v2	x
Fractal Design	Node 304	No need
Fractal Design	Node 804	No need
Fractal Design	Core	No need
GAMDIAS	NESO P1	AG-P5-33SR-020BK-v2/v3		x
HAVN	HS 420	AG-P5-33SR-020BK-v2/v3		x - Screw holes are not aligned, standoffs are required.

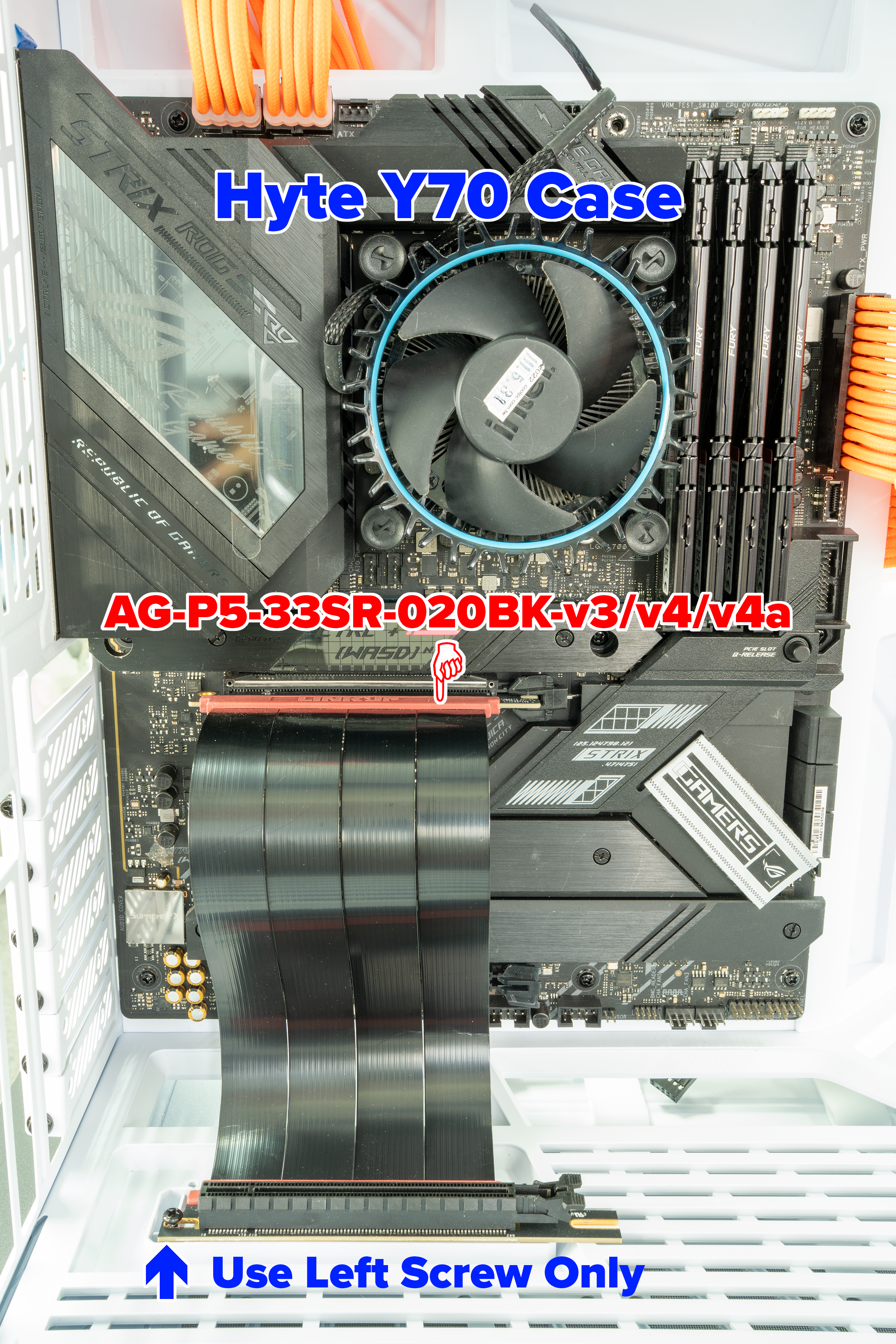

HYTE	Y60 / Y70	AG-P5-33SR-020BK-v3/v4	Installation Photo	x - Only Left Screw Is Used.
KOLINK	ROCKET V2	AG-P5-33SV-025BK-v3/v4
Lian Li	O11 DYNAMIC XL (with Bracket)	AG-P5-33SR-015BK-v2/v3		x
Lian Li	O11 Vision (with Bracket)	AG-P5-33SR-015BK-v2/v3		x
Lian Li	O11 DYNAMIC EVO (with Bracket)	AG-P5-33SR-015BK-v2/v3			x
Lian Li	O11 DYNAMIC Mini V2	AG-P5-33SR-015BK-v2/v3/v4			Rotatable GPU Bracket
Lian Li	SUP01	AG-P5-33SR-060BK-v2/v3/v4			x

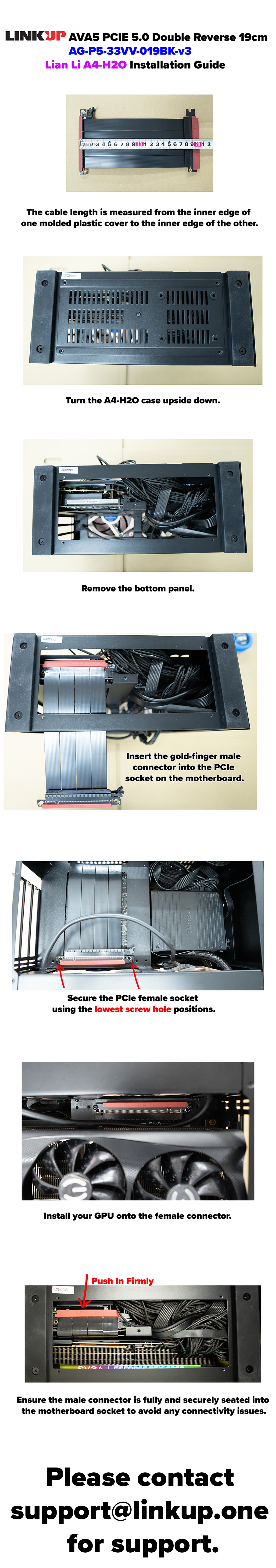

Lian Li	A4-H2O	AG-P5-33VV-019BK-v3	Installation Guide
Lian Li	LanCool 216	AG-P5-33SR-015BK-v2/v3/v4			Rotatable GPU Bracket
Lian Li	Q58	AG-P5-33VL-024BK-v2/v4			x

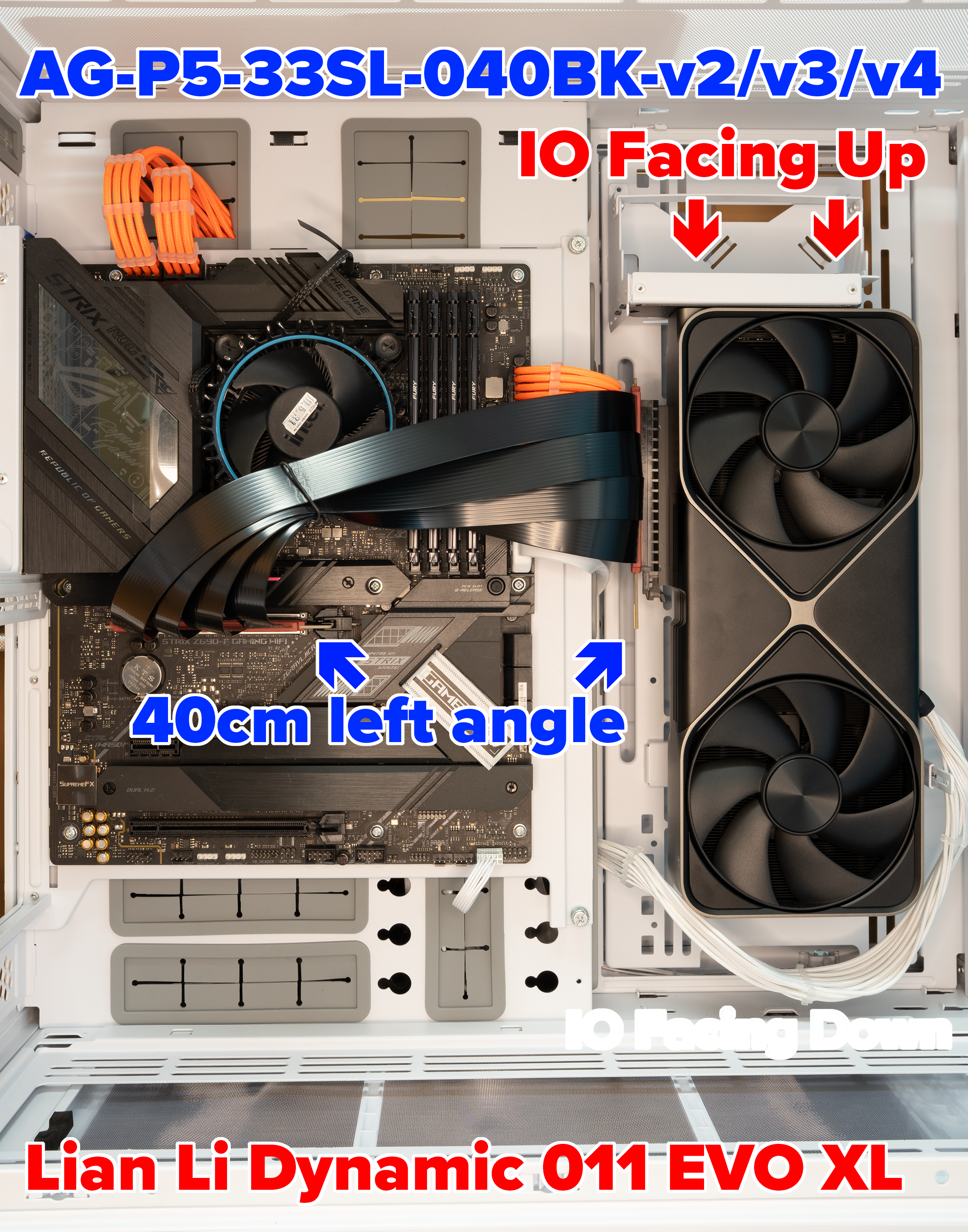

Lian Li	O11 DYNAMIC EVO XL Upright Installation – I/O Facing Upward	AG-P5-33SL-040BK-v2/v4	Setup Image		Upright GPU – I/O Facing Up - (Cable Front Route)
Lian Li	O11 DYNAMIC EVO XL Upright Installation – I/O Facing Upward	AG-P5-33SR-060BK-v2/v3/v4	Setup Image		Upright GPU – I/O Facing Up - (Cable Behind Motherboard Route)

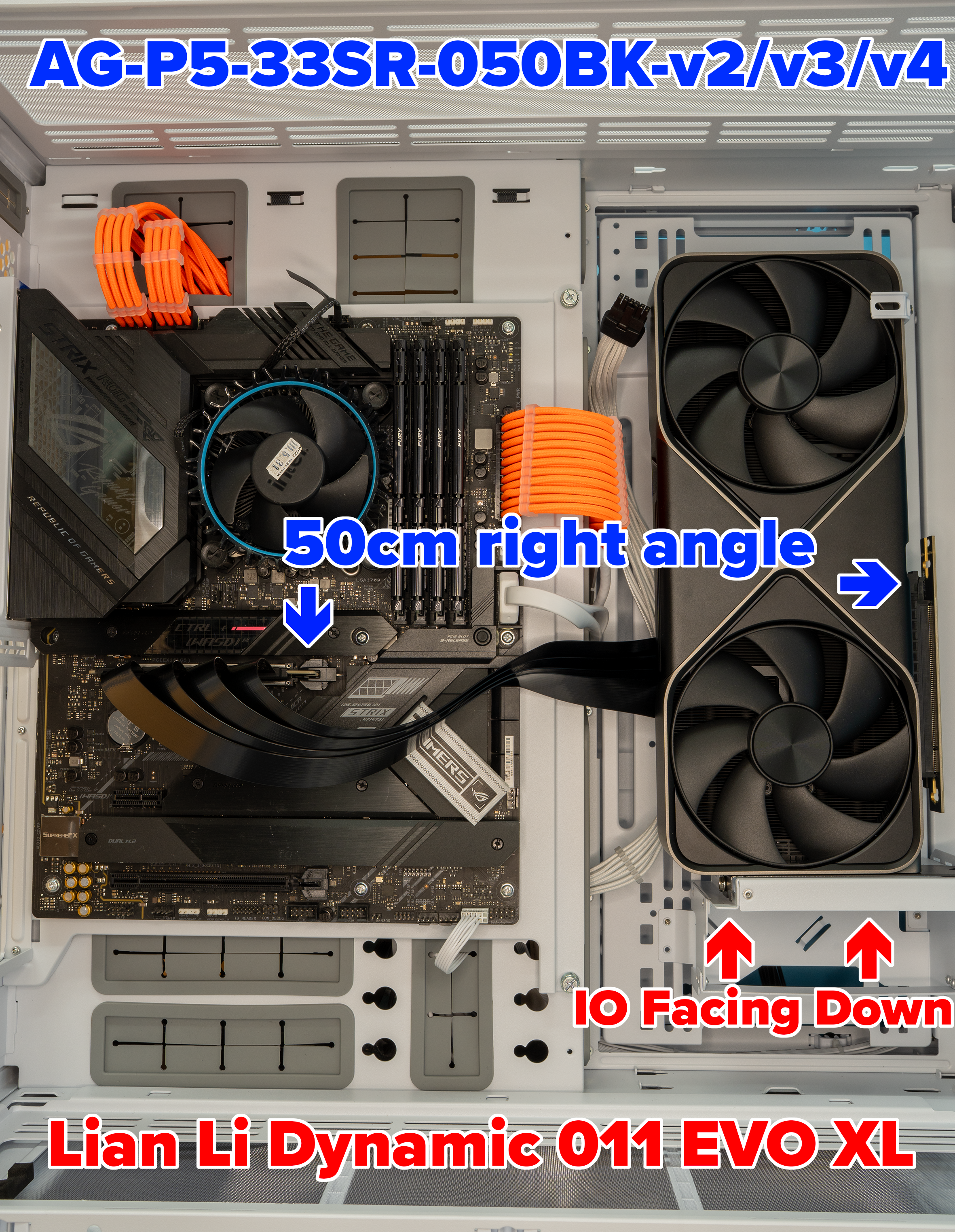

Lian Li	O11 DYNAMIC EVO XL Upright Installation – I/O Facing Downward	AG-P5-33SR-050BK-v2/v3/v4	Setup Image		Upright GPU – I/O Facing Down - (Cable Front Route)

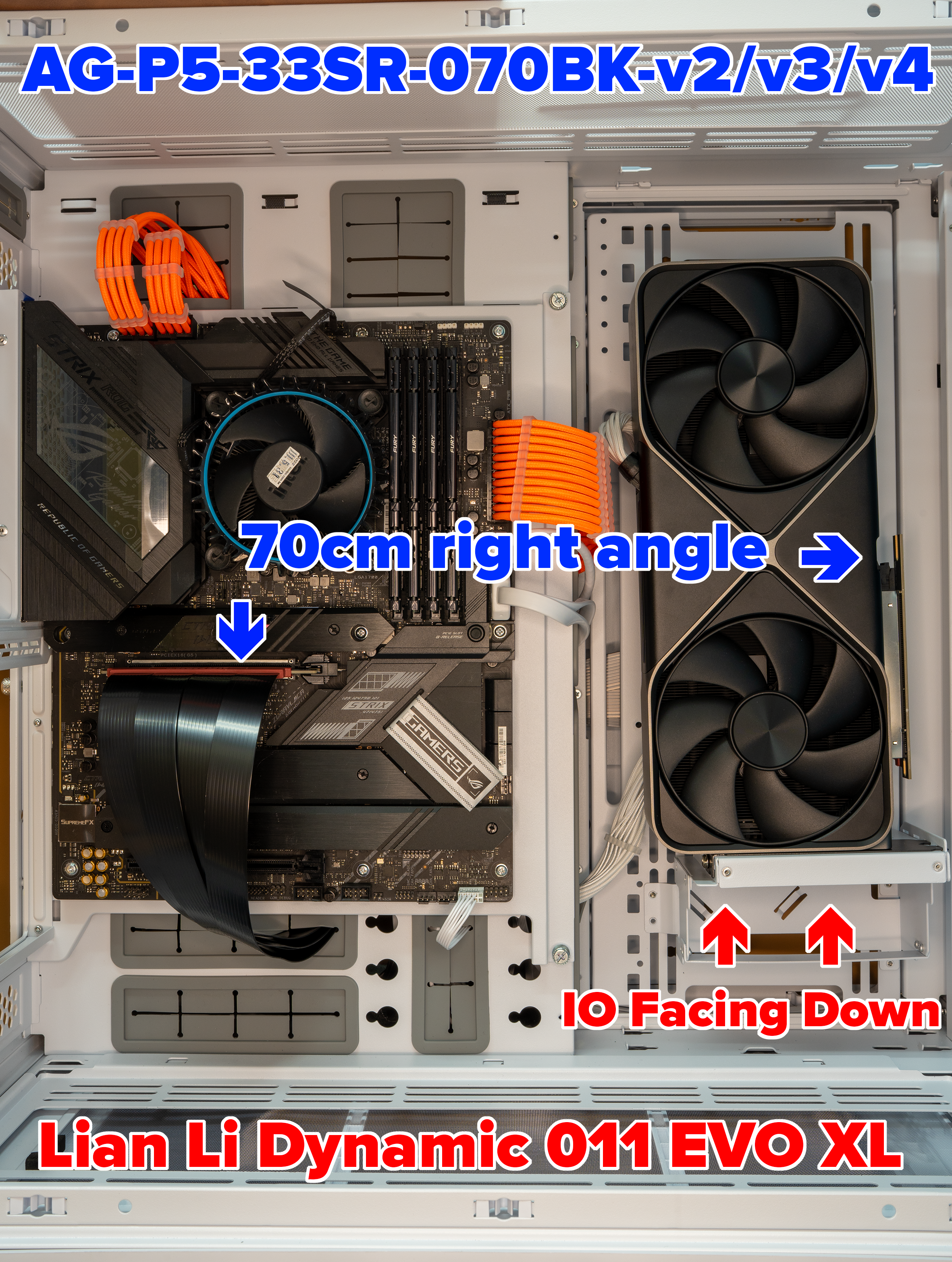

Lian Li	O11 DYNAMIC EVO XL Upright Installation – I/O Facing Downward	AG-P5-33SR-070BK-v2/v3/v4	Setup Image		Upright GPU – I/O Facing Down - (Cable Behind Motherboard Route)
Lian Li	VG4-4 Brackets	AG-P5-33SR-015BK-v3/v4	Installation Guide
LOUQE	RAW S1	AG-P5-33SV-023BK-v1/v2/v3		x
LOUQE	GHOST S1 MkII	AG-P5-33VV-018BK-v2/v3	x
Midori	5L-V2.2 V2.3	AG-P5-33SR-020BK-v2/v3		x
MSI	Maestro 700L PZ	AG-P5-33SR-015BK-v3			x (Rotatable PCI Slots)
MSI	MAG Pano 100L PZ	AG-P5-33SR-015BK-v3			x (Rotatable PCI Slots)
Nanoxia	Project S Mini	AG-P5-33SL-005BK-v2
NCASE	M2 (2-slot GPU)	AG-P5-33SR-006BK-v4		x
NCASE	M2 (3-Slot GPU)	AG-P5-33SR-006BK-v4
NCASE	FormD T1 (2-slot GPU, Gen4 Vertical Mount)	AG-P5-33VV-019BK-v3(only)

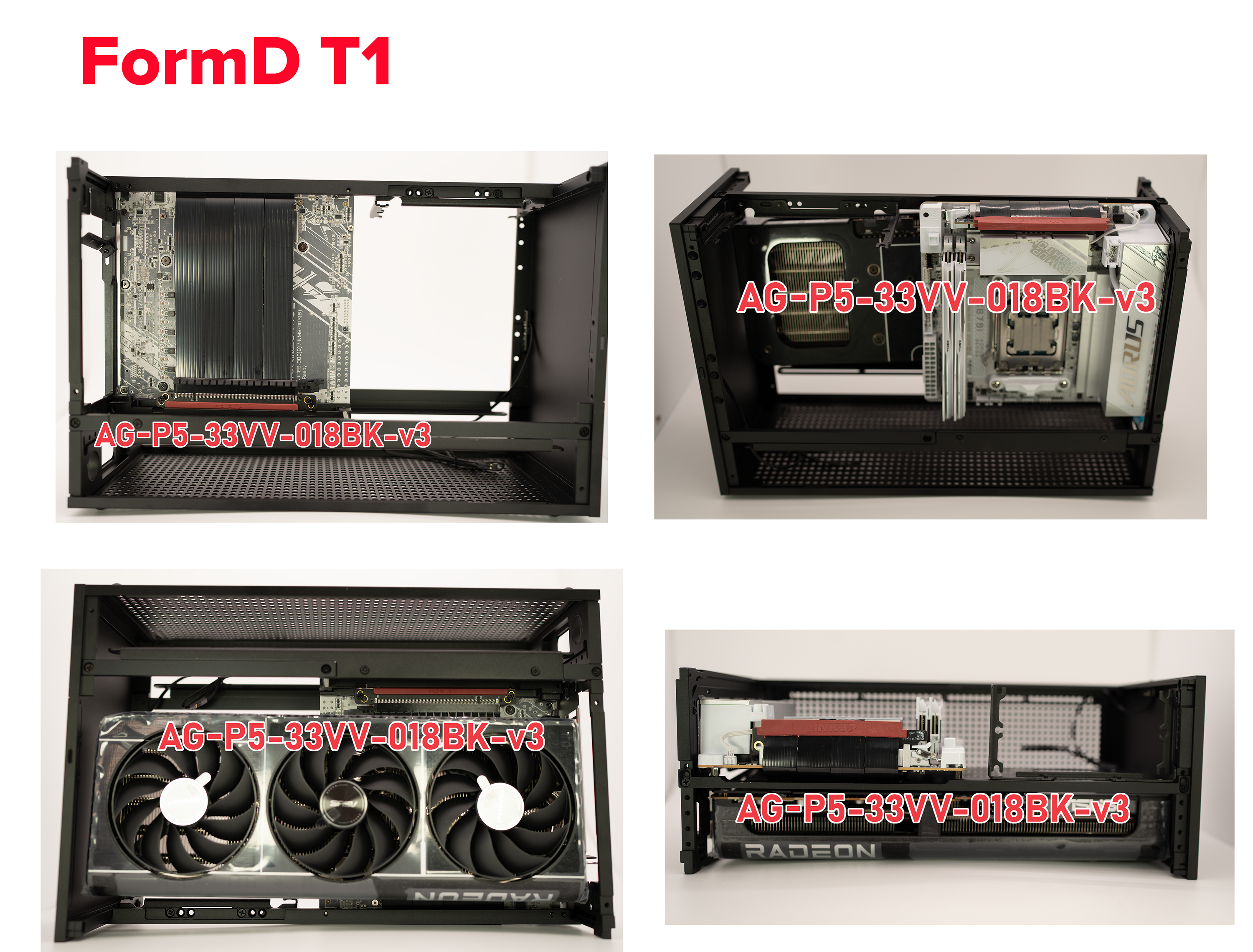

NCASE	FormD T1 (3-slot GPU, Gen4 Vertical Mount)	AG-P5-33VV-018BK-v3(only)			x
NCASE	FormD T1 (Gen5 Vertical Mount)	AG-P5-33VL-024BK-v2
Nouvolo	Nouvolo	AG-P5-33VV-018BK-v2/v3	x

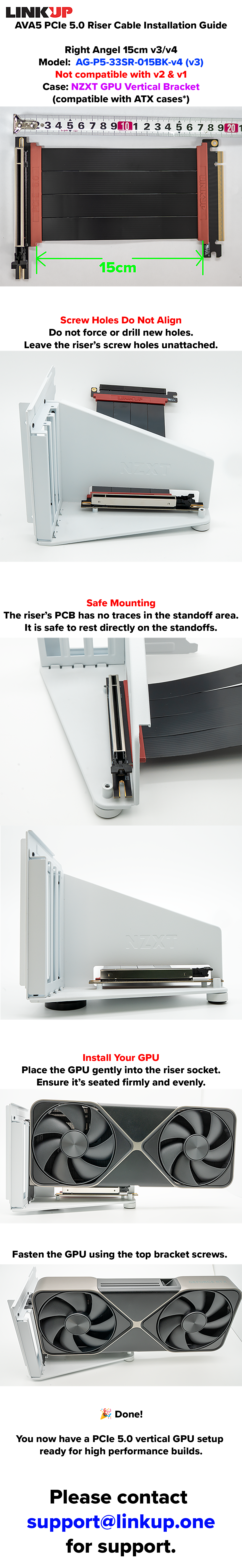

NZXT	Vertical Mount	AG-P5-33SR-015BK-v3/v4	Installation Guide	x

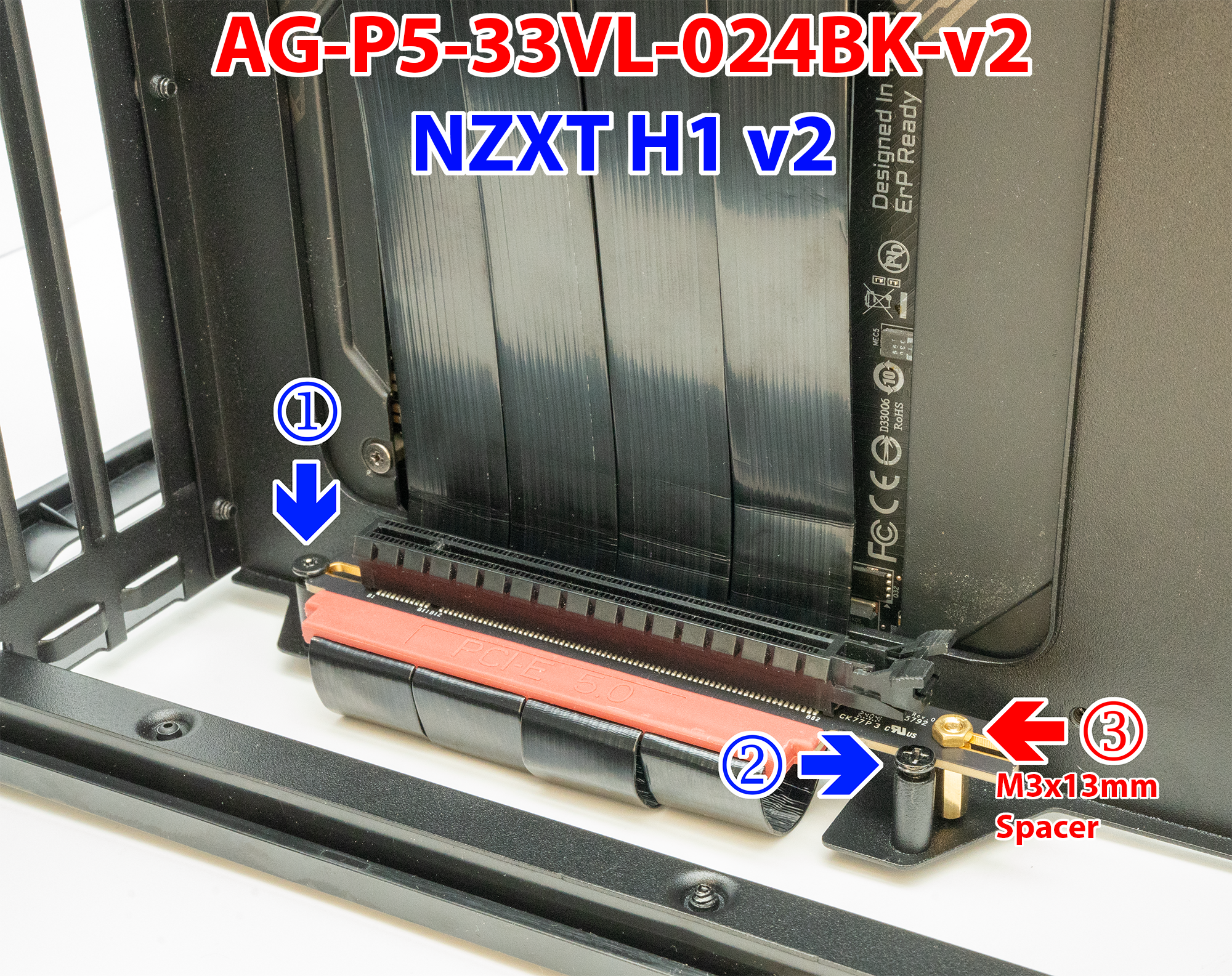

NZXT	H1	AG-P5-33VL-024BK-v2/v4	x
NZXT	H5 (with Bracket)	AG-P5-33SR-015BK-v3/v4	Installation Guide
NZXT	H6 (with Bracket)	AG-P5-33SR-015BK-v3/v4	Installation Guide
NZXT	H7 (with Bracket)	AG-P5-33SR-015BK-v3/v4	Installation Guide
NZXT	H9 (with Bracket)	AG-P5-33SR-015BK-v3/v4	Installation Guide
Okinos	Aqua 9	AG-P5-33SR-015BK-v2/v3			x (Rotatable PCI Slots)
PCCOOLER	CPS C3 T700 ARGB	AG-P5-33SR-020BK-v2/v3/v4		User Verified	M5x12 hex nuts and screws can be used to as standoffs to support heavy GPU.
Phanteks	Eclipse P500A	AG-P5-33SR-015BK-v2/v3		x
Phanteks	Evolv X	AG-P5-33SR-020BK-v2/v3/v4		x
Phanteks	NV7	AG-P5-33SR-020BK-v2/v3/v4		x
Phanteks	Enthoo Elite	AG-P5-33SR-020BK-v2/v3/v4		x
Phanteks	Enthoo 719	AG-P5-33SR-015BK-v2/v3 (for upper level) AG-P5-33SR-030BK-v2/v3 (for lower level)			x
Phanteks	Enthoo Pro II	AG-P5-33SR-015BK-v2/v3			x
Phanteks	Shift XT	AG-P5-33VV-019BK-v3			x
Phanteks	Eclipse P600	AG-P5-33SR-015BK-v2/v3			x
Phanteks	Eclipse P500	AG-P5-33SR-015BK-v2/v3			x
Phanteks	Evolv Shift X	AG-P5-33VL-024BK-v2
Phanteks	Evolv Shift Air	AG-P5-33VL-024BK-v2
Phanteks	Evolv Shift 2	AG-P5-33VL-024BK-v2
Phanteks	Premium Vertical Bracket	AG-P5-33SR-015BK-v2/v3			x
SilverStone	MILO 12	AG-P5-33SS-005BK-v1/v2		x
Sliger	SM580	AG-P5-33VL-024BK-v2
Sliger	SM550	AG-P5-33VL-024BK-v2
SSUPD	Meshlicious	AG-P5-33VV-014BK-v3	x
SSUPD	Meshroom S (Mini-ITX)	AG-P5-33VV-014BK-v3		x
SSUPD	Meshroom S (MATX)	AG-P5-33SV-030BK-v3			x
SSUPD	Meshroom S (ATX)	AG-P5-33SV-040BK-v3			x
Streacom	DA6 XL	AG-P5-33VV-020BK-v3		x
Thermaltake	A500 / A700	AG-P5-33SS-020BK-v2			x
Thermaltake	AH T600	AG-P5-33SS-020BK-v2			x
Thermaltake	Commander (All Series)	AG-P5-33SS-020BK-v2
Thermaltake	Core P1 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core P3 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core P3 Pro (New)	AG-P5-33SS-020BK-v2 AG-P5-33SR-020BK-v3
Thermaltake	Core P5 (with Bracket)	AG-P5-33SS-020BK-v2	x
Thermaltake	Core P6 (with Bracket)	AG-P5-33SS-020BK-v2	x
Thermaltake	Core P8 (with Bracket)	AG-P5-33SS-020BK-v2	x
Thermaltake	Core P90 (with Bracket)	AG-P5-33SS-020BK-v2	x
Thermaltake	Core V71 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core W200 / W100 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core X31 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core X71 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	Core X9 (with Bracket)	AG-P5-33SS-020BK-v2			x
Thermaltake	CTE C700 (with Bracket)	AG-P5-33SS-015BK-v2			x
Thermaltake	CTE C750 Series	AG-P5-33SS-015BK-v2			x
Thermaltake	CTE E550 TG - Type B	AG-P5-33SL-025BK-v2/v4	Installation Photo 1 Installation Photo 2 Installation Photo 3		Screws are not used. Use the middle slot for GPU installation.

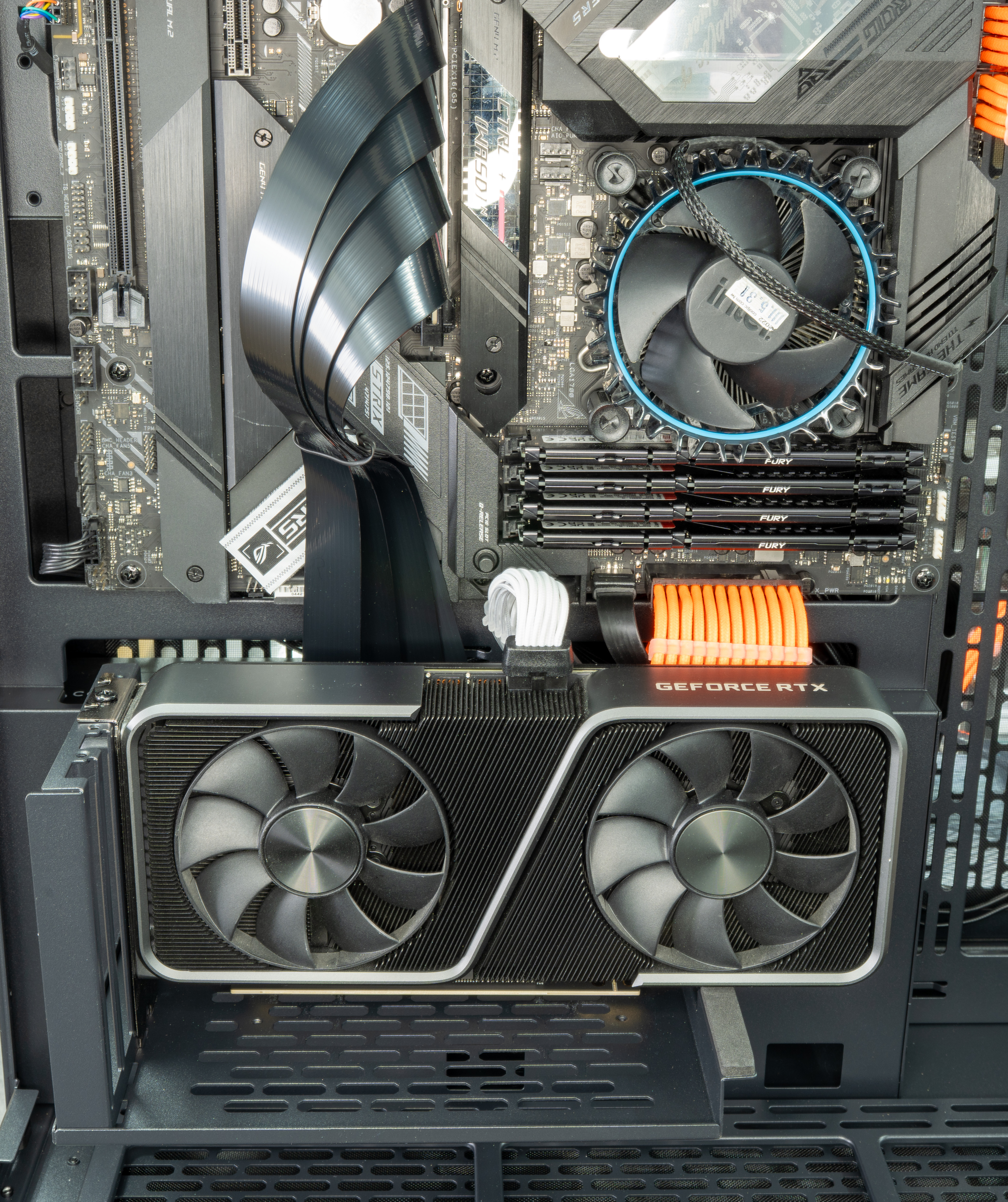

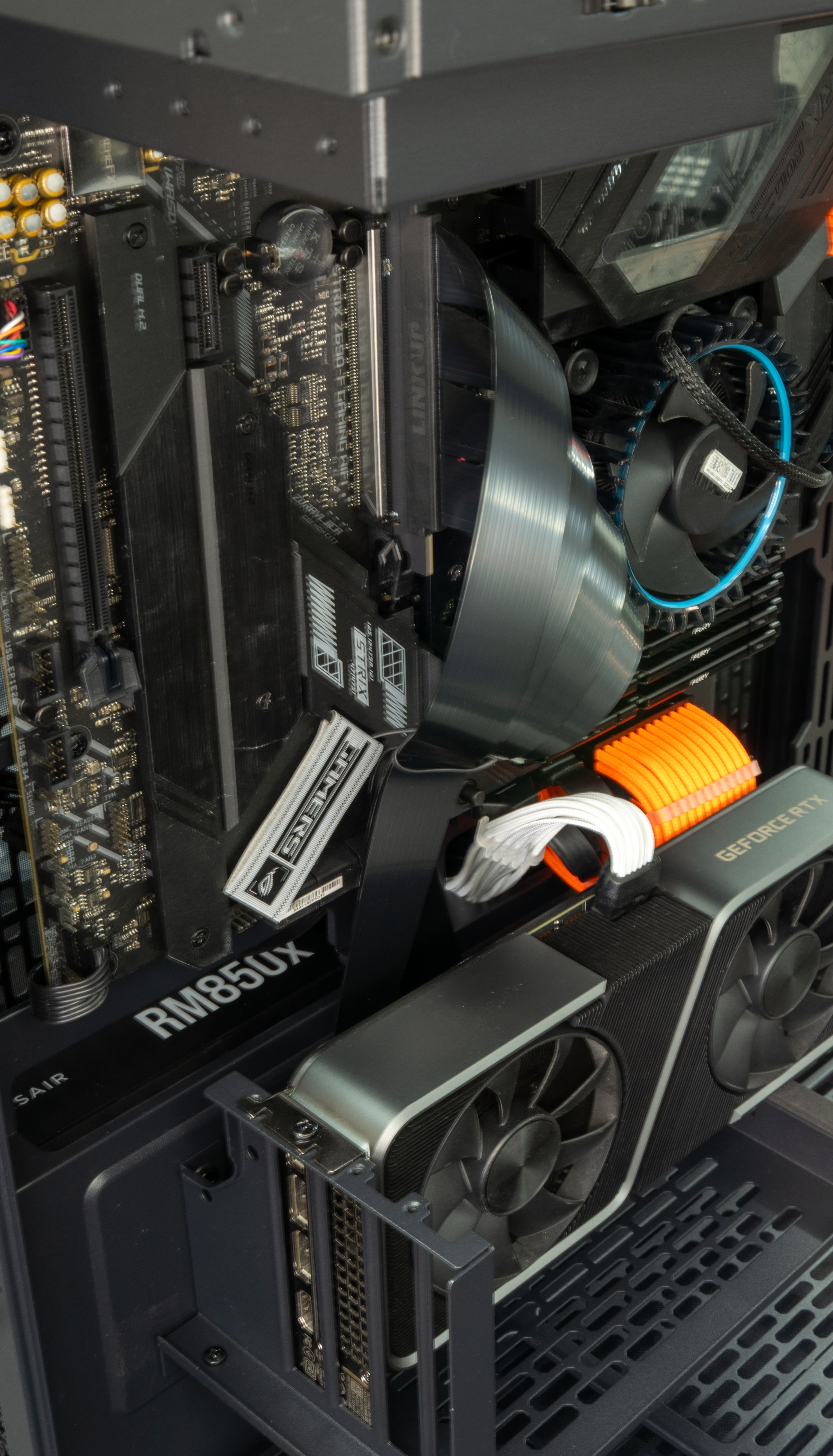

Thermaltake	CTE E550 TG - Type C	AG-P5-33SR-040BK-v2/v3/v4	Bracket + GPU 1 Bracket + GPU 2		Thermaltake Bracket in Type C Position
Thermaltake	CTE E600/660 MX - (Configure B)	AG-P5-33SR-015BK-v2/v3		x
Thermaltake	CTE E600/660 MX - (Configure C)	AG-P5-33SR-040BK-v3		x
Thermaltake	DistroCase	AG-P5-33SS-020BK-v2
Thermaltake	Divider 200 TG	AG-P5-33SR-010BK-v2/v3			x
Thermaltake	Divider 300 TG	AG-P5-33SS-020BK-v1/v2
Thermaltake	Divider 370 TG	AG-P5-33SR-015BK-v2/v3			x
Thermaltake	Divider 500 TG	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	H550	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	Level 20	AG-P5-33SS-020BK-v2
Thermaltake	S250 / S300 / S500	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	Suppressor F31	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	Suppressor F51	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	The Tower 600 Series	AG-P5-33SR-015BK-v2/v3			x
Thermaltake	TR100	AG-P5-33SV-023BK-v3		x
Thermaltake	V350	AG-P5-33SS-020BK-v1/v2			x
Thermaltake	View 27	AG-P5-33SS-020BK-v2			x
Thermaltake	View 28	AG-P5-33SS-020BK-v2			x
Thermaltake	View 300	AG-P5-33SS-020BK-v2
Thermaltake	View 31 TG	AG-P5-33SS-020BK-v2			x
Thermaltake	View 37	AG-P5-33SS-020BK-v2			x
Thermaltake	View 51 TG ARGB	AG-P5-33SS-020BK-v2		x
Thermaltake	View 71 TG ARGB	AG-P5-33SS-020BK-v2		x
Thermaltake	View 91 TG RGB	AG-P5-33SS-020BK-v2
THOR ZONE	MJOLNIR	AG-P5-33VV-018BK-v2/v3	x
THOR ZONE	NANOQ S	AG-P5-33VV-020BK-v3	x		x
THOR ZONE	NANOQ R	AG-P5-33VV-021BK-v3	x
XTIA	XPROTO Mini	AG-P5-33VV-019BK-v3	x
